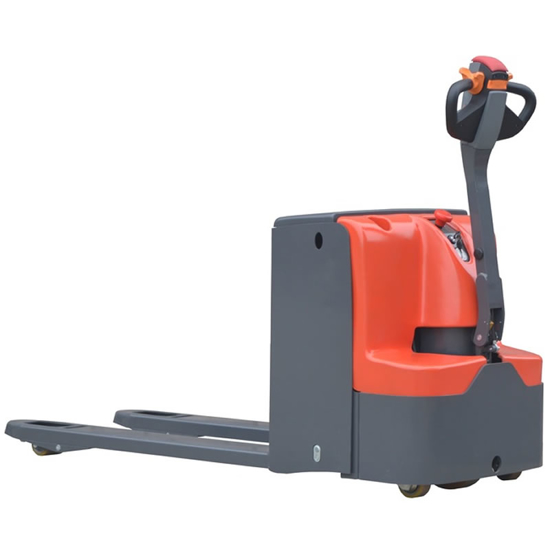

2000kg Full Electric Pallet Truck
This electric pallet jack has 2000kg capacity, good for use on a large truck to move items or pallets. Full Electric Pallet Jack in Stock Melbourne.
- *
2000kg Full Electric Pallet Truck
2 T Auto Electric Pallet Truck
Model: SL20GE
Capacity: 2000kg
Load Center: 600 mm
Service weight with battery: 520 kg
driving wheels size: 230×70 mm
Bearing wheels size: 80×70 mm
Min-Max Fork Height: 85-200 mm
Overall height /(with handle): 825/1278 mm
Overall length: 1742 mm
Length to fork face: 592 mm
Overall width: 720 mm
Fork dimensions: 50x160x1150 mm (H x W x L)
Fork width: 685 mm
Min. Ground clearance: 35 mm
Aisle width with pallet 1000×1200 across forks: 1962 mm
Aisle width with pallet 800×1200 along forks: 2012 mm
Min. Turning radius: 1517 mm
Performance Travel speed, laden/unladen: 4.2/4.5 km/h
Lifting speed, with/without load: 21/27 mm/s
Lowering speed, with/without load: 38/28 mm/s
Maximum climbing ability, with/without load: 8/15 %
Drive motor,60 minute rating: 13 kw
Battery voltage/rated capacity: 24/210 V/Ah
Battery weight (+-5%): 195 kg
Type of drive control: DC
Steering Type: Mechanical
Service brake: Electromagnetic
Warranty: 1 Year labor & parts warranty.
This electric pallet jack has 2000kg capacity, good for use on a large truck to move items or pallets. It’s power moving and lifting.
The innovation AC system offers strong power, accurate control, excellent performance.
High strength vertical gearbox, longer working life.
Hour meter and the battery indicator will remind the operator of charging.
Safety belly button and tiller brake
In Stock Melbourne.
